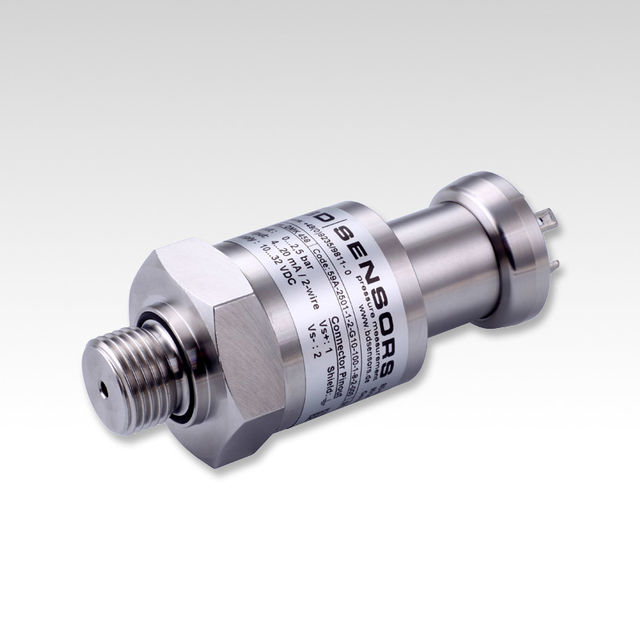

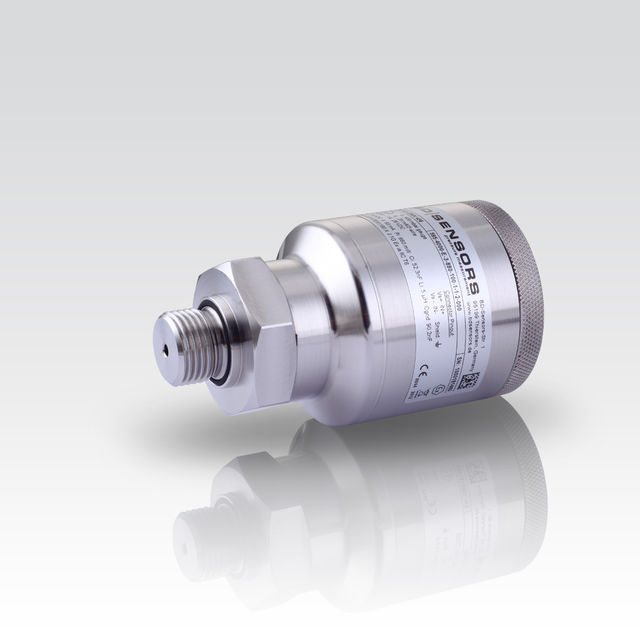

pressure transmitter DMK 458
CEExDNV-GLLloyd´s RegisterCCSABS

DMK 458

ceramic sensor
marine, shipbbuilding, offshore

The pressure transmitter DMK 458 has been developed for marine and offshore applications. In addition to thread connections, different flush versions are available, which are especially suitable for pasty, viscous, and polluted media.


Due to the capacitive ceramic sensor developed by BD|SENSORS, which is optionally available in Al2O3 99.9 %, the DMK 458 shows an outstanding accuracy as well as a high overload and temperature resistance.

Features

  • nominal pressure: 0 ... 40 mbar up to 0 ... 20 bar
  • accuracy: 0.1 % / 0.25 % FSO
  • shipping approvals GL (Germanischer Lloyd), DNV (Det Norske Veritas), CCS (China Classification Society)
  • high overpressure resistance
  • excellent accuracy

Optional Features

  • IS-version
  • Ex ia = intrinsically safe for gases and dusts
  • diaphragm AI2O3 99.9 %
  • pressure port CuNiFe



Areas of application

  • mechanical and plant engineering mechanical and plant engineering
  • marine and shipbuilding marine and shipbuilding

Media

  • fuels and oils fuels and oils
  • water water
  • viscous and pasty media viscous and pasty media
