pressure transmitter DMP 331Pi
ExCEIECEX3A
Precision Pressure Transmitter; processing of the sensor signal using digital electronics; vacuum resistant

DMP 331 Pi

stainless steel sensor (flush)
hygienic applications

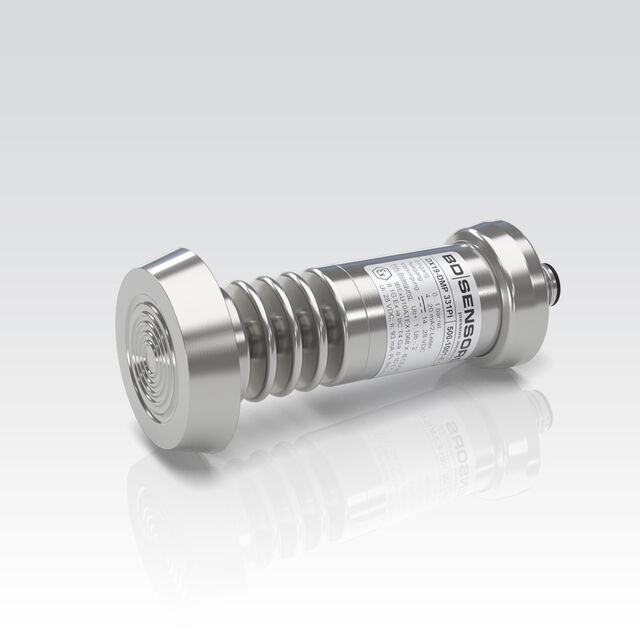

The precision pressure transmitter DMP 331Pi demonstrates the further development of well-tried industrial pressure transmitter DMP 331P.


The signal from the specially designed piezoresistive stainless steel sensor is processed by the newly developed digital electronic system, performing thus an active compensation of sensor-specific deviations such as hysteresis, thermal errors and non-linearity.


The temperature field of application of
-40 ... 125 °C can be extended by the integration of a cooling element up to 300 °C.

Features

  • nominal pressure: 0 ... 400 mbar to 0 ... 40 bar
  • accuracy: 0.1 % FSO
  • excellent temperature response 0.04 % FSO / 10K (≤ 0.04 % FSO / 10K)
  • hygenic version
  • vacuum resistant
  • processing of the sensor signal using digital electronics

Optional Features

  • IS-version
  • Ex ia = intrinsically safe for gases and dusts
  • communication interface for adjustment of offset, span and damping

Areas of application

  • laboratory laboratory
  • food and beverage food and beverage
  • pharmaceutical industry pharmaceutical industry

Media

  • fuels and oils fuels and oils
  • water water
  • viscous and pasty media viscous and pasty media
