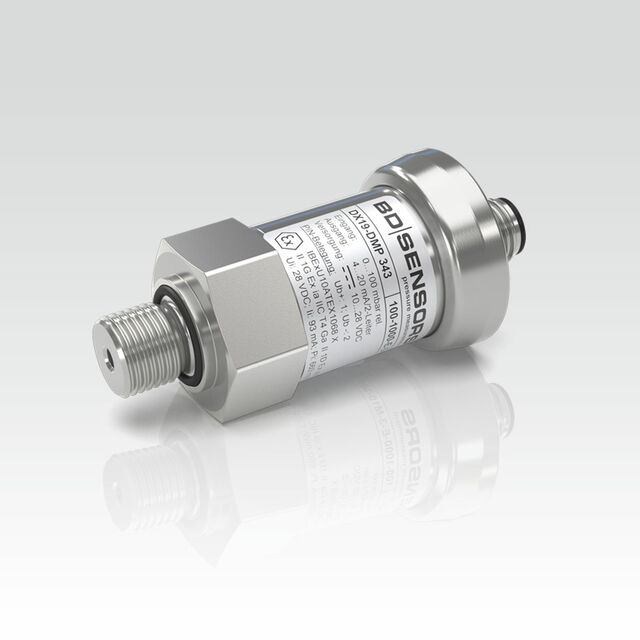

pressure transmitter DMP 343
CEExIECEXUL

DMP 343

stainless steel sensor (without media isolation)
HVAC

The pressure transmitter DMP 343 has been especially designed for the measurement of very low gauge pressure and for vacuum applications. Permissible media are non-aggressive, dry gases and non-aggressive, low viscos oils.

The DMP 343 features excellent thermal behaviour and outstanding long term stability. A variety of standard output signals as well as mechanical and electrical connections make the DMP 343 covering a wide field of applications.

Features

  • nominal pressure: 0 ... 10 mbar up to 0 ... 1000 mbar
  • accuracy: 0.35 % FSO
  • small thermal effect
  • excellent long term stability
  • excellent linearity

Optional Features

  • IS-version
    Ex ia = intrinsically safe for gases and dusts
  • different electrical and mechanical connections
  • customer specific versions

Areas of application

  • mechanical and plant engineering mechanical and plant engineering
  • HVAC HVAC

Media

  • fuels and oils fuels and oils
  • gases gases
