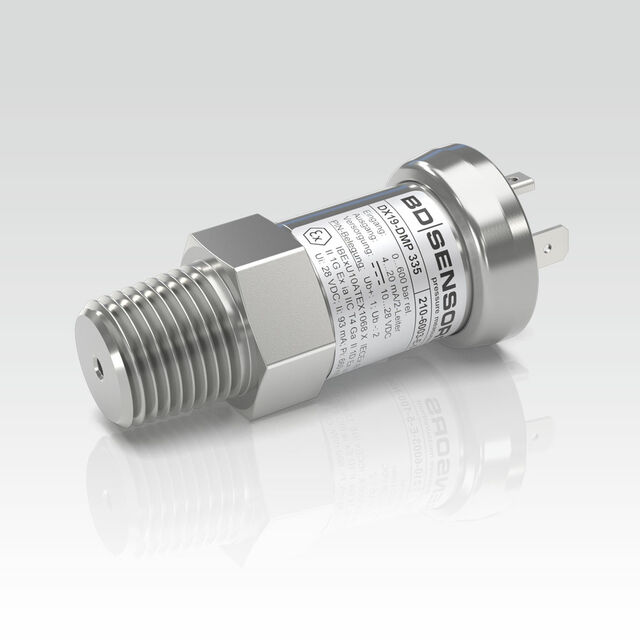

pressure transmitter DMP 335
Industrial Pressure Transmitter; welded, dry Stainless Steel Sensor; suitable for oxygen applications

DMP 335

stainless steel sensor (welded)
medical technology, hydraulics

The industrial pressure transmitter DMP 335 is based on a stainless steel welded pressure sensor without fluid.


This characteristic has a special advantage with applications where silicon oil or elastomeric seals cannot be used.

Features

  • nominal pressure: 0 ... 6 bar up to 0 ... 600 bar
  • accuracy: 0.5 % FSO
  • suitable for oxygen applications
  • insensitive to pressure peaks
  • high overpressure capability

Optional Features

  • IS-version
  • Ex ia = intrinsically safe for gases and dusts
  • customer specific versions

Areas of application

  • mechanical and plant engineering
  • energy industry
  • refrigeration engineering
  • medical technolgy
  • utility vehicles / mobile hydraulics

Media

  • fuels and oils
  • water
  • oxygen
