pressure transmitter DMP 331
ExSILIECEXULCE
[Translate to englisch:] Industrie-Druckmessumformer für Niederdruck mit Edelstahlsensor; universell anwendbar; Drucksensor verschweißt

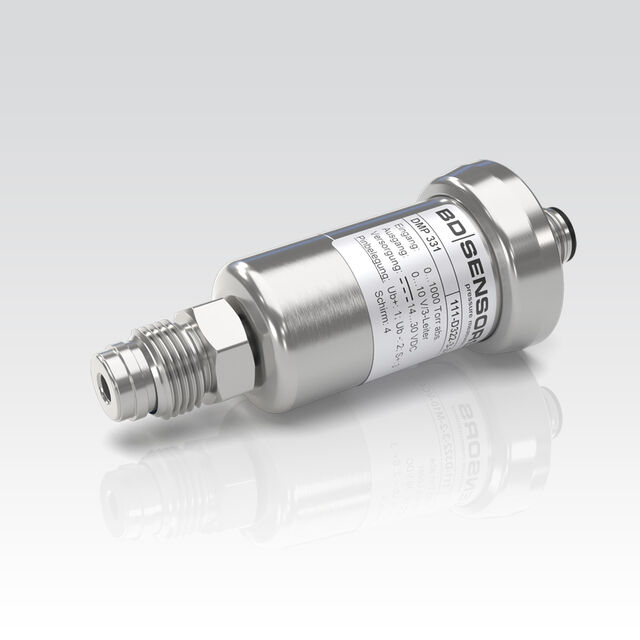

DMP 331

stainless steel sensor
universal applications

The pressure transmitter DMP 331 can be used in all industrial areas when the medium is compatible with stainless steel 1.4404 (316 L) or 1.4435 (316 L). Additional are different elastomer seals as well as a helium tested welded version available.

The modulare concept of the device allows to combine different stainless steel sensors and electronic modules with a variety of electrical and mechanical versions.Thus a diversity of variations is created, meeting almost all requirements in industrial applications.

Features

  • nominal pressure: 0 ... 100 mbar up to 0 ... 60 bar
  • accuracy: 0.35 % (opt. 0.25 % / 0,1%) FSO
  • flush pressure port G 1/2" from 100 mbar
  • excellent thermal behavior
  • excellent accuracy

Optional Features

  • IS-version
    Ex ia = intrinsically safe for gases and dusts
  • SIL 2 according to IEC 61508 / IEC 61511
  • pressure sensor welded
  • customer specific versions

Areas of application

  • mechanical and plant engineering mechanical and plant engineering
  • energy industry energy industry
  • HVAC HVAC
  • environmental industry environmental industry

Media

  • fuels and oils fuels and oils
  • water water
  • gases gases
