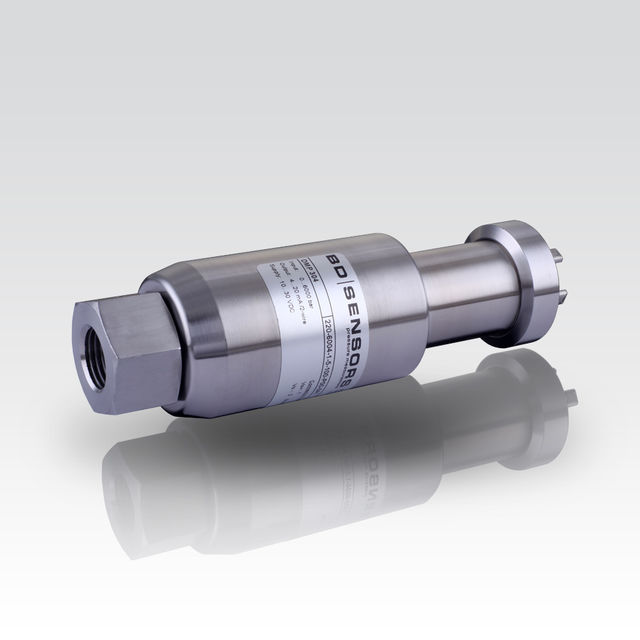

pressure transmitter DMP 304
CEEx
Industrial Pressure Transmitter for ultra high pressure; front sided potentiometers; pressure port 9/16" UNF

DMP 304

stainless steel sensor (strain gauge)
oil and gas industry

The high-pressure transmitter type DMP 304 has been especially designed for applications with highest demand on precision and reliability. DMP 304 series is based on a compensated strain gauge, bonded onto a stainless steel diaphragm.

Due to the rugged stainless steel housing usage under extreme conditions and in IS-required areas is no problem.

Features

  • nominal pressure: 0 ... 2000 bar up to 0 ... 6000 bar
  • accuracy: 0.5 % (opt. 0.25 %) FSO
  • pressure port 9/16" UNF
  • 80 % calibration signal with MIL / Bendix plug
  • adjustability of offset and span via front sided potentiometers

Optional Features

  • IS-version
    Ex ia = intrinsically safe for gases
  • pressure port M20 x 1.5 and M16 x 1.5



Areas of application

  • mechanical and plant engineering mechanical and plant engineering
  • energy industry energy industry
  • laboratory laboratory
  • utility vehicles / mobile hydraulics utility vehicles / mobile hydraulics
  • oil and gas industry oil and gas industry

Media

  • fuels and oils fuels and oils
  • water water
