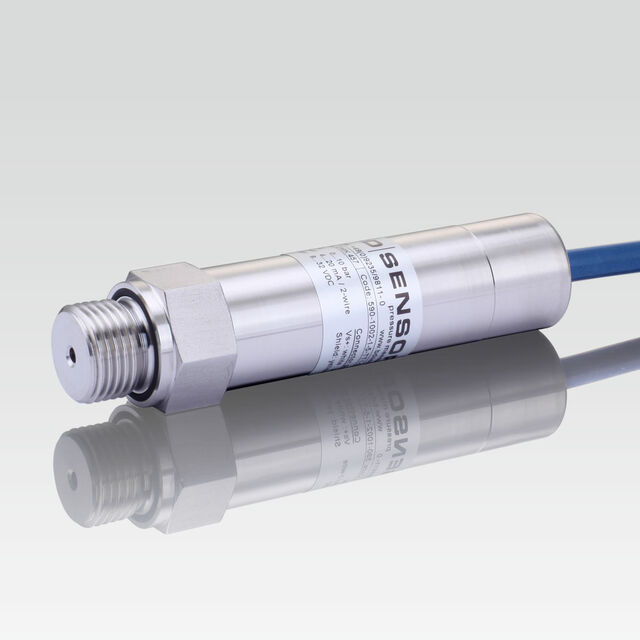

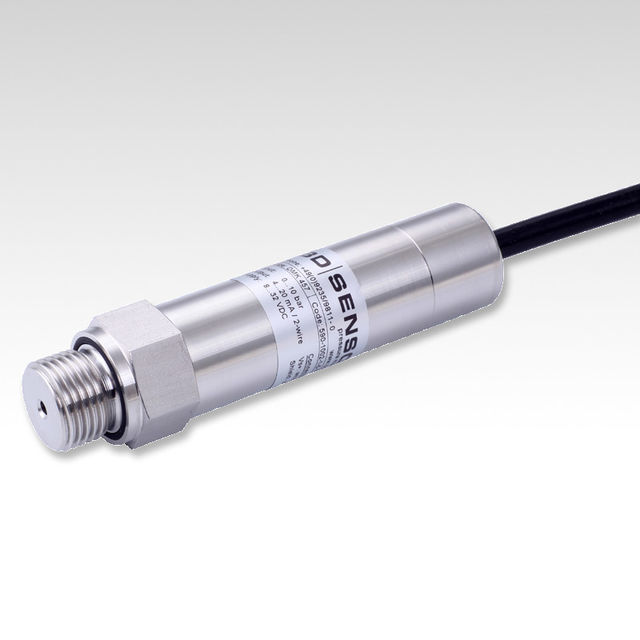

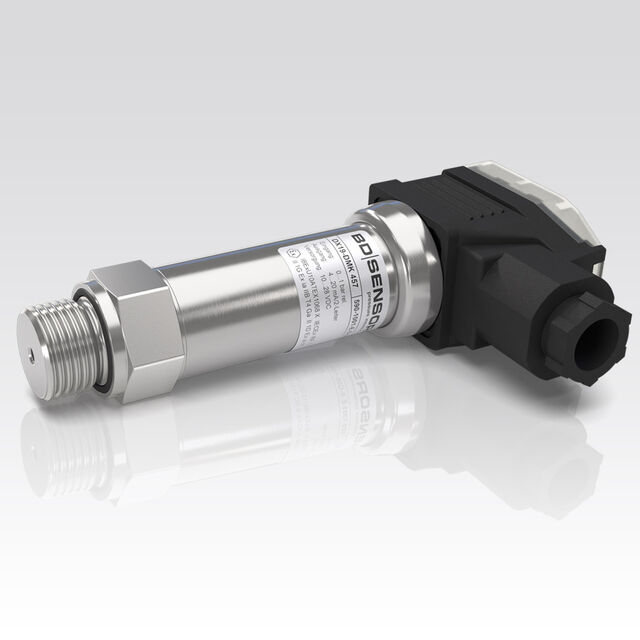

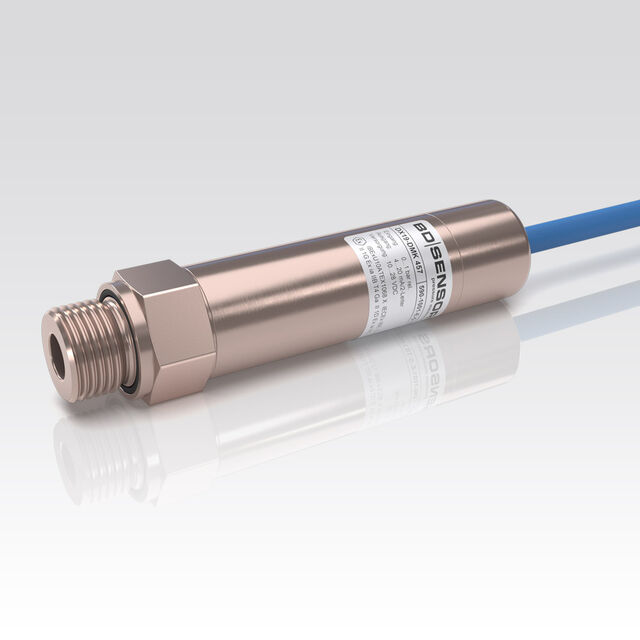

pressure transmitter DMK 457
ExCCSIECEXLloyd´s RegisterABSDNV-GLCEBV
pressure transmitter DMK457
pressure transmitter DMK457

DMK 457

ceramic sensor
marine, shipbbuilding, offshore

The pressure transmitter DMK 457 with ceramic sensor has been designed for typical applications in shipbuilding and offshore constructions as alternative to our pressure transmitter DMP 457 with piezoresistive stainless steel sensor.

In combination with the copper-nickel-alloy the DMK 457 is suitable for seawater, e.g. level measurement in ballast tanks, etc.



Features

  • nominal pressure: 0 ... 400 mbar up to 0 ... 600 bar
  • accuracy: 0.5 % FSO
  • shipping approvals: American Bureau of Shipping (ABS), Bureau Veritas (BV), China Classification Society (CCS), Det Norske Veritas (DNV), Germanischer Lloyd (GL), Lloyd's Register (LR)
  • pressure port CuNiFe (sea water resistant)
  • oxygen application

Optional Features

  • IS-version
    Ex ia = intrinsically safe for gases and dusts

Areas of application

  • mechanical and plant engineering mechanical and plant engineering

Media

  • fuels and oils fuels and oils
  • water water
