CEULModbus RTU
diitaler Druckmessumfomer DCT531

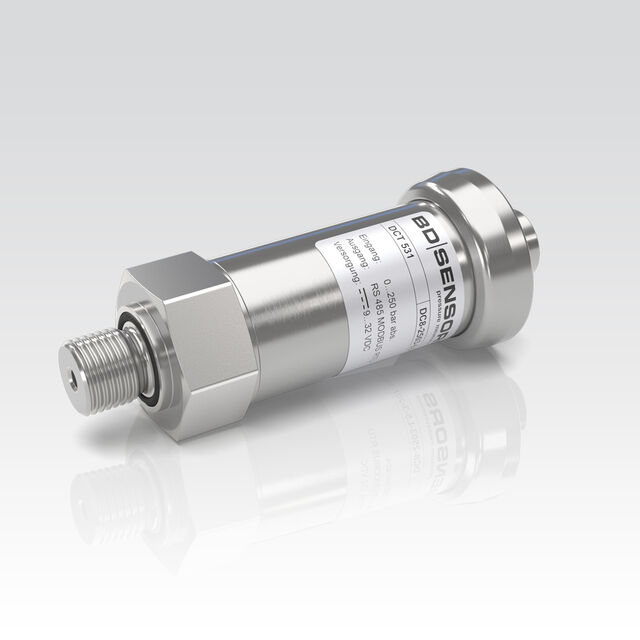

DCT 531

stainless steel sensor
with RS485 Modbus RTU

The DCT 531 with RS485 interface uses the communication protocol Modbus RTU which has found the way in industrial communication as an open protocol. The Modbus protocol is based on a master Slave architecture with which up to 247 Slaves can be questioned by a master – the data will transfer in binary form.

Due to the usage of high quality materials and components, the DCT 531 is suitable for almost every industrial application, if medium is compatible with stainless steel 316L.

The modular concept of the pressure transmitter allows customized electrical or mechanical connections, so it is easy to adapt the DCT 531 to different conditions on-site.

Features

  • nominal pressure: 0 ... 100 mbar up to 0 ... 400 bar
  • accuracy: 0.25% FSO
  • output signal: RS485 with Modbus RTU protocol
  • perfect thermal behaviour
  • excellent long term stability
  • reset function

Optional Features

  • pressure port G 1/2" flush up to max. 40 bar
  • pressure sensor welded
  • customer specific versions

Areas of application

  • mechanical and plant engineering mechanical and plant engineering
  • energy industry energy industry

Media

  • fuels and oils fuels and oils
  • water water
  • gases gases
