Tauchsonde LMK358H
Tauchsonde LMK358H
Tauchsonde LMK358H

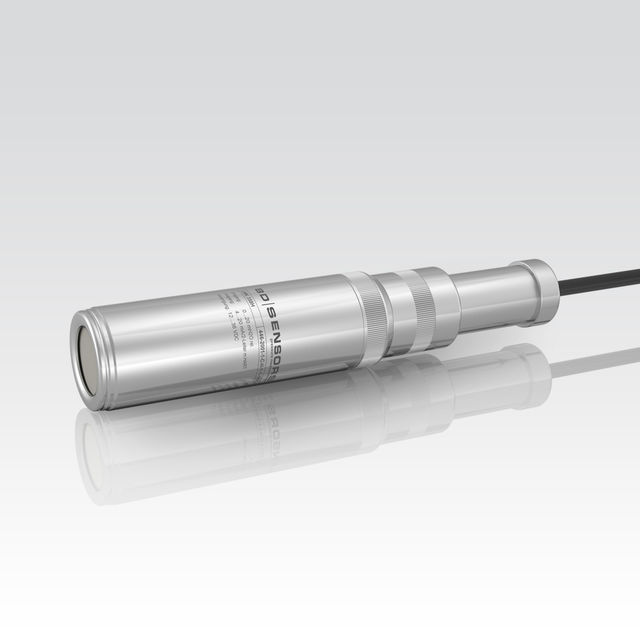

LMK 358 H

ceramic sensor
detachable stainless steel probe Ø 39,5

The detachable stainless steel probe LMK 358H has been designed for level measurement in waste water, waste and higher viscosity media. Basic element is a capacitive ceramic sensor.

In order to facilitate stock-keeping and maintenance the transmitter head is plugged to the cable assembly with a connector and can be changed easily.

Features

  • nominal pressure range 0 ... 60 cmH2O up to 0 ... 100 mH2O
  • accuracy: 0.1 %
  • diameter 39,5 mm

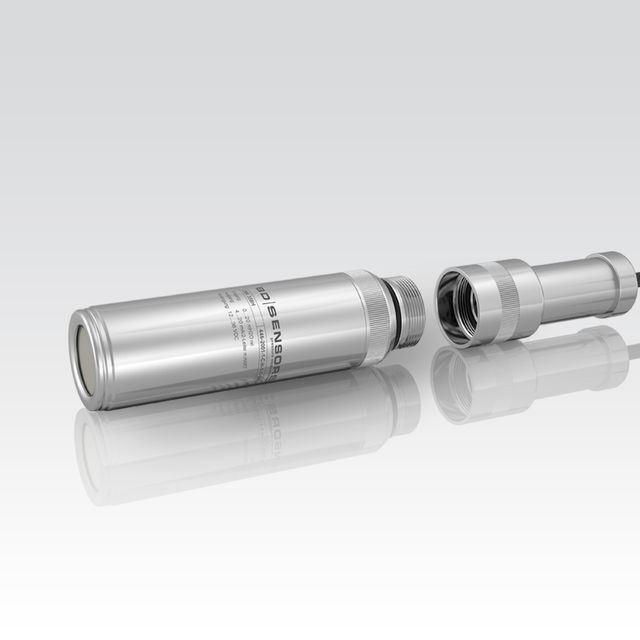

  • cable and sensor section detachable
  • HART®-communication (setting of offset. span and damping)
  • permissible temperatures up to 85 °C
  • high long term stability

Optional Features

  • IS-version
    Ex ia = intrinsically safe for gas and dust
  • cable protection via corrugated pipe
  • diaphragm (AI2O3 99,9 %)
  • accessories e.g. mounting flange with cable gland and terminal clamp

Areas of application

  • chemical industry chemical industry
  • energy industry energy industry
  • environmental industry environmental industry

Media

  • sewage water, sludge sewage water, sludge
  • fuels and oils fuels and oils
  • water water
