digitaler Druckmessumfomer DCT533

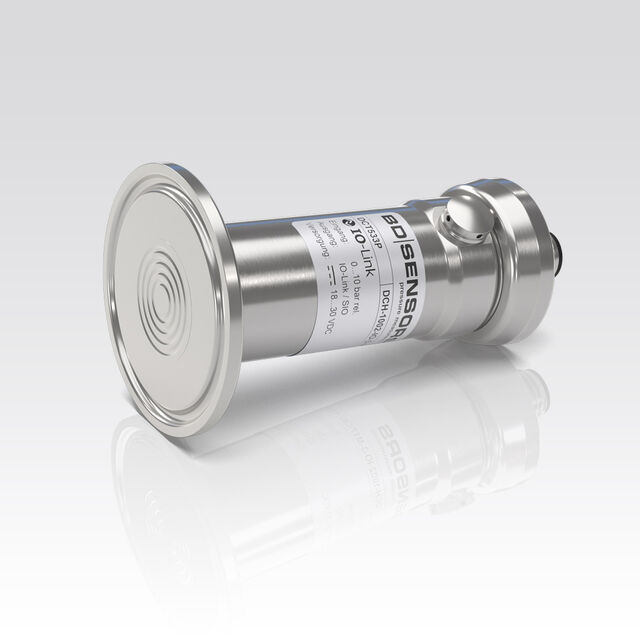

DCT 533P

stainless steel sensor (strain gauge)
with IO-link interface

The DCT 533P is suitable for food / beverage and pharmaceutical industry as well as, for applications where a totally flush pressure port is required. The special design prevents condensation inside the pressure transmitter and thus a failure in applications with large temperature changes.

The integrated, standardised IO-Link interface increases productivity and supports the operator in service and maintenance. Properties can be read and qualified via IO-Link, which helps the user to assess the state of system or process.

Features

  • nominal pressure: from 0 ... 100 mbar up to 0 ... 40 bar
  • accuracy: 35 % (Opt. 0,25%) FSO
  • IO-Link according to specification V 1.1
  • Data transfer 38.4 kBaud
  • Smart sensor profile
  • hygenic version
  • CIP / SIP cleaning up to 150 °C
  • ingress protection IP 67 / IP 69
  • diaphragm with low surface roughness

Optional Features

  • cooling element for media temperatures up to 300 °C
  • different process connections

Areas of application

  • mechanical and plant engineering mechanical and plant engineering
  • food and beverage food and beverage
  • pharmaceutical industry pharmaceutical industry

Media

  • fuels and oils fuels and oils
