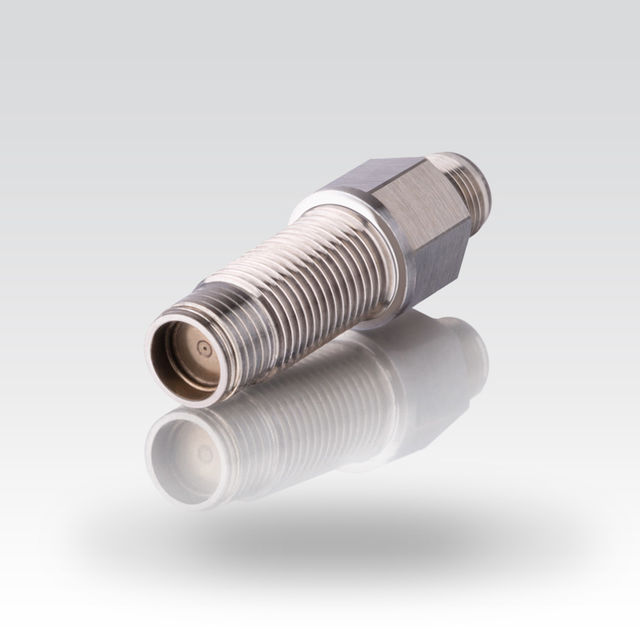

pressure sensor DAC 103 piezoelectric

DAC 103

dynamic pressure measurements
for heavily vibrating systems

The sensor was developed for dynamic and quasistatic pressure detection up to 250 bar. Due to its active acceleration compensation, the sensor returns an exact signal even on heavily vibrating systems. Thanks to its size (M5x0.5 thread) and its temperature resistance up to 400 °C, the sensor is suitable for a broad range of applications.

Features

  • nominal pressure range 0 ... 250 bar
  • operating temperature °C -40 ... 400
  • sensitivity pC/bar 16
  • natural frequency kHz 165
  • mechanical connection M5x0.5
  • active acceleration compensated

Areas of application

  • mechanical and plant engineering mechanical and plant engineering
  • hydraulics hydraulics
  • laboratory laboratory
