submersible probe LMK 458
CEULExABSBVCCSDNV-GLLloyd´s Register
[Translate to englisch:] hydrostatische Füllstandssonde LMK 458 zur Erfassung von Füllständen in Service- und Produktlagertanks für Applikationen im Schiffbau und Offshorebereich

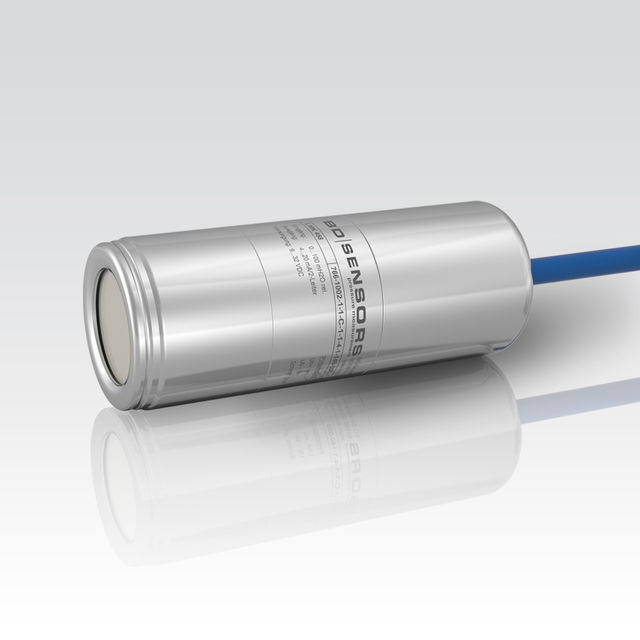

level probe LMK458
level probe LMK458

LMK 458

ceramic sensor
stainless steel probe Ø 39,5

The hydrostatic probe LMK 458 has been developed for measuring level in service and storage tanks and is as a consequence certificated for shipbuilding and offshore applications.

A permissible operating temperature of up to 125 °C and the possibility to use the device in intrinsic safe areas enable to measure the pressure of various fluids under extreme conditions. The basis for the LMK 458 is a capacitive ceramic sensor element designed by BD|SENSORS, which offers a high overload resistance and medium compatibility.

Features

  • nominal pressure: 0 ... 40 cmH2O up to 0 ... 200 mH2O
  • accuracy: 0.35 % (opt. 0.1 %) FSO
  • diameter 39.5 mm
  • shipping approvals: American Bureau of Shipping (ABS), Bureau Veritas (BV), China Classification Society (CCS), Det Norske Veritas (DNV), Germanischer Lloyd (GL), Lloyd's Register (LR)
  • high overpressure capability
  • high long term stability
  • permissible temperatures up to 125 °C

Optional Features

  • IS-version
    Ex ia = intrinsically safe for gas
  • diaphragm pure ceramic (99,9% AI2O3)
  • different housing materials (stainless steel, CuNiFe)
  • screw-in and flange version accessoires e.g. assembling and probe flange, mounting clamp

Areas of application

  • marine and shipbuilding marine and shipbuilding

Media

  • sewage water, sludge sewage water, sludge
  • fuels and oils fuels and oils
  • water water
