pressure transmitter DMP 457
CEExIECEXABSBVCCSDNV-GLLloyd´s Register

DMP 457

stainless steel sensor
marine, shipbbuilding, offshore

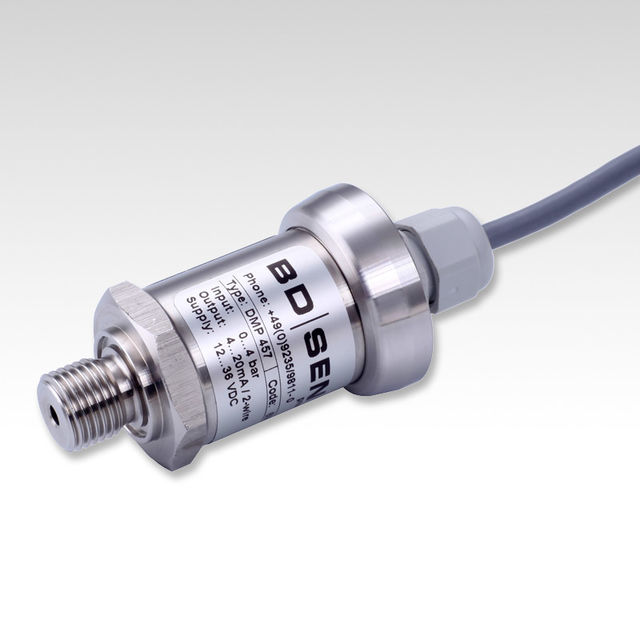

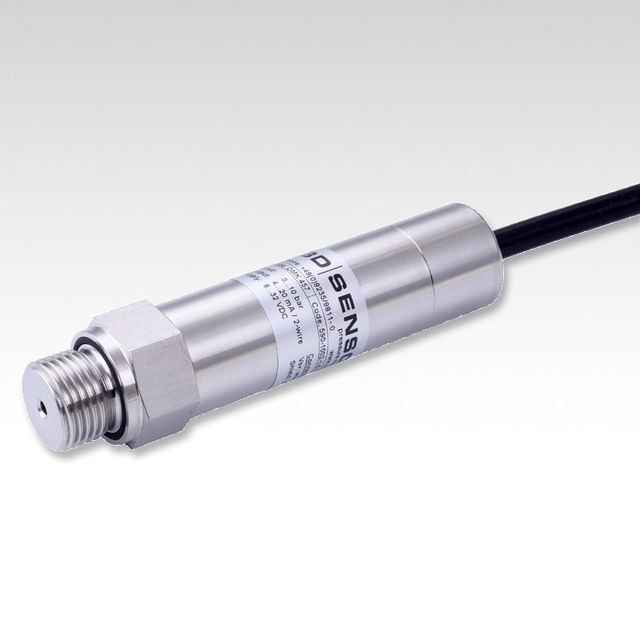

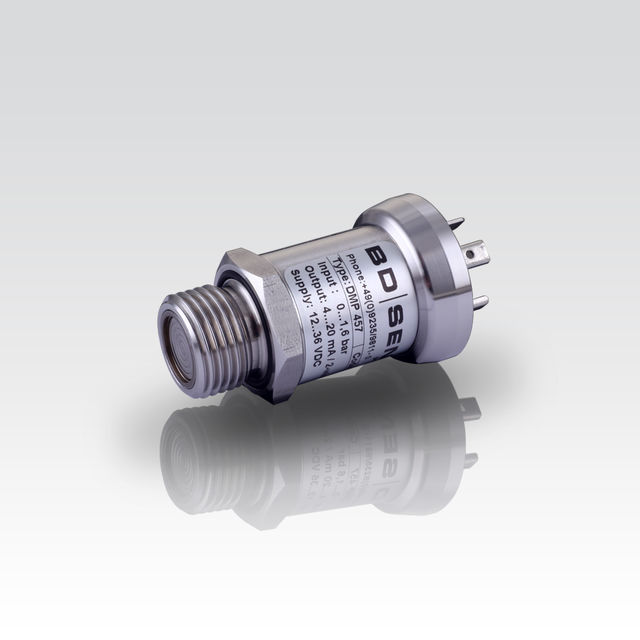

The pressure transmitter DMP 457 has been especially designed for rough conditions occurring especially in shipbuilding and offshore applications. All gaseous and liquid media, which are compatible with stainless steel 1.4404 (316L) respectively can be used.

Sensor element is a piezoresistive stainless steel sensor with high accuracy and excellent long-term stability. In order to meet the special requirements for shipbuilding and offshore applications extensive tests had to be passed to get the Lloyd´s Register, Germanischer Lloyd (GL), Det Norske Veritas (DNV), Bureau Veritas (BV) and China Classification Society (CCS) approvals.

Features

  • nominal pressure: 0 ... 100 mbar up to 0 ... 600 bar
  • accuracy: 0.35 % (opt. 0.25 %) FSO
  • flush pressure port G 1/2" from 100 mbar
  • excellent thermal behavior
  • shipping approvals: LR (Lloyd´s Register), DNV (Det Norske Veritas), GL (Germanischer Lloyd), ABS (American Bureau of Shipping), Bureau Veritas (BV), CCS (China Classification Society)

Optional Features

  • IS-version
    Ex ia = intrinsically safe for gases and dusts
  • welded pressure port

Areas of application

  • mechanical and plant engineering mechanical and plant engineering
  • marine and shipbuilding marine and shipbuilding

Media

  • fuels and oils fuels and oils
  • water water
